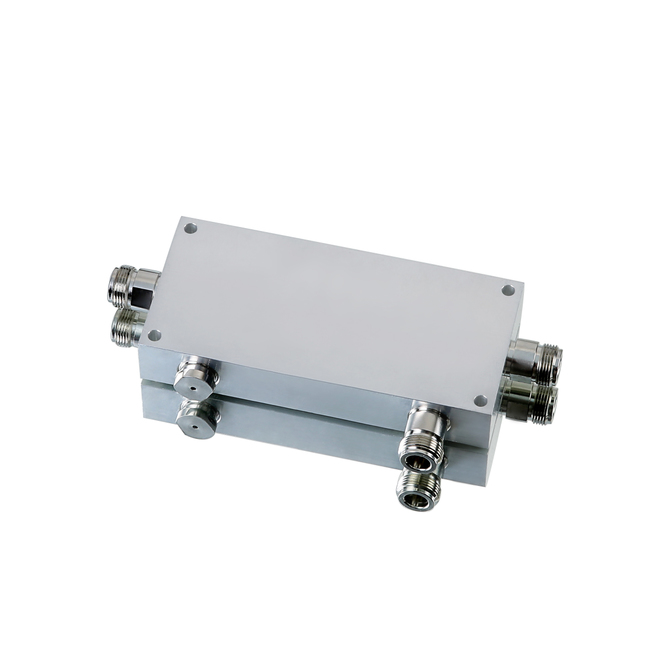

Coupler/Tapper / Directional Coupler
Search Results
| Part Number | Band (GHz) | Ins Loss | Coupling | Directivity | Return Loss | PIM (dBc) | Power | Drawing | Quote Cart |
|---|---|---|---|---|---|---|---|---|---|
| DC0150T0600NF-6dB | 0.150~0.600 | 1.7 | 6 | 20 Min | 19 | 10 |  |
||
| DC0150T0600NF-10dB | 0.150~0.600 | 1.0 Max | 10 | 20 Min | 19 | 10 | |
||
| DC0150T0600NF-20dB | 0.150~0.600 | 0.7 Max | 20 | 20 Min | 19 | 10 | |
||
| DC0300T0600NF-35dB-SIN | 0.300~0.600 | 0.2 Max | 35 ± 2 | 20 Min | 21 | 300 | |
||
| DC-0350T2700-10dB-NF | 0.350~0.960/1.695~2.700 | 0.8 | 10.5±1.5 | 21 | 155 (2×20W) | 10 | |
||
| DC-0350T2700-20dB-NF | 0.350~0.960/1.695~2.700 | 0.3 | 20.0±1.5 | 18 | 155 (2×20W) | 10 | |
||
| DC-0350T2700-6dB-NF | 0.350~0.960/1.695~2.700 | 1.7 | 6.1±1.4 | 14 | 155 (2×20W) | 10 | |
||
| DC-0350T2700-3dB-NF | 0.350~0.960/1.695~2.700 | 2.2 | 4.8±1.3 | 14 | 155 (2×20W) | 10 | |
||
| JFCDC0380T3600NF10 | 0.380~3.600 | 0.3 | 10+/-1.5 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0380T3600NF15 | 0.380~3.600 | 0.3 | 15+/-1.8 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0380T3600NF20 | 0.380~3.600 | 0.3 | 20+/-2 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0380T3600NF30 | 0.380~3.600 | 0.3 | 30+/-2 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0380T3600NF6 | 0.380~3.600 | 0.3 | 6+/-1.2 | 17.7 | 140 (2x43dBm) | 200 | |
||
| DC0400T3000SF | 0.400~3.000 | 1.2 | 10+/-1 | 16 | 15 | |
|||
| DC0690T2700-40dB-NF | 0.698~2.700 | 0.2 | 40 | 23 | 150 (2x20w) | 250 | |
||
| JFCDC0698T3600NF30 | 0.698~3.600 | 0.3 | 30+/-2 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0698T3600NF20 | 0.698~3.600 | 0.3 | 20+/-2 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0698T3600NF15 | 0.698~3.600 | 0.3 | 15+/-1.8 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0698T3600NF10 | 0.698~3.600 | 0.3 | 10+/-1.5 | 17.7 | 140 (2x43dBm) | 200 | |
||
| JFCDC0698T3600NF6 | 0.698~3.600 | 0.3 | 6+/-1.2 | 17.7 | 140 (2x43dBm) | 200 | |
||
| DC0700T1000NF-35dB-SIN | 0.700~1.000 | 0.2 Max | 35 ± 2 | 20 Min | 21 | 300 | |
||
| JDX5706A | 0.915~0.960 | 0.2 | 30+/-1.0 | 20 | 20 | 155 (2x43dBm) | 100 | |
|
| JDX5705A | 0.915~0.960 | 0.2 | 40+/-1.0 | 20 | 20 | 155 (2x43dBm) | 100 | |
|
| DC0950T2150-30DB-SF | 0.950~2.150 | 0.2 | 30 | 20 | 50 | |
|||
| BDC-10-1000T40K0K0 | 1.0~40.0 | 2.5 | 10+/-1.5 | 10 | 10.88 | 30 | |
||
| DC9200T9700SF-20 | 9.200~9.700 | 0.2 | 20+/-1 | 20 | 40 | |
